Rock wool polyurethane edge-sealing roof panel (FASEC)has excellent fire resistance
Field of employment
Modern standard workshops, breeding farms, convention and exhibition centers, stadiums, airports, logistics and warehousing and other construction industry plants and civil building roofs.
Thickness of plating(mm)
50,65,75,100mm
Fireproof performance
Grade A1
Product features

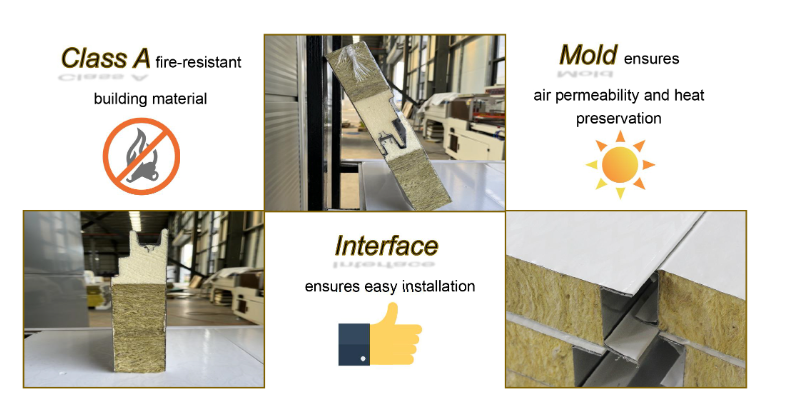

Using polyurethane side sealing technology, the plate is fireproof and has excellent moisture-proof performance.
Four waves of corrugated to increase the robustness of the board.
The inner plate can use aluminum foil instead of color steel plate to improve the high temperature and corrosion resistance of the product.
Types and advantages of steel plates
Material selection:
Stainless steel plate, color steel plate, aluminum-magnesium-manganese plate, specific materials can be customized according to customer requirements, color steel plate thickness and color.
ADWANTAGES
· Light weight, 10kg ~ 14kg / m2 , equivalent to 1 / 30 of brick wall.
· Good heat insulation, sound absorption and sealing performance.
· The construction period can be shortened by more than 40%.
· Bright color, beautiful appearance, no need to decorate the surface.
· With high strength, it can be used as enclosure structure, load-bearing structure, bending resistance
and pressure resistance, and general houses no need use beams and columns.
Connection type
| METALSNADWICHPANEL |
| Steel Thickness | 0.15-0.78 mm |
| Core Thickness | 50/75/100/150/200mm |
| Core Material | Rock wool/Glass wool/EPS/PU |
| Effective width | Roof: 950mm/980mm Wall: 950mm/1000mm/1150mm |
| Length | According to customer's request, less than 11.8m |
| Structure | three layers: (1) upper layer is steel sheet, (2) the inner layer is rock wool/Glass wool/EPS/PU |
| EPS density | 40(kg/m³) |
| color | White grey, blue or refer RAL |
| Parts | Steel line for easy connect one by one Film covering in order to protect the steel of panels |
| lifetime | 15 years |
| Character | Light in weight, heat insulation, water proof, environmental |
| Use | factory buildings, storages, exhibition halls, gymnasiums etc. |
| Packing | Packing in shipping on container or according to your demands |
